| Model | LP-2424RA5 | LP-2424RD5 |
|---|---|---|
| Input Voltage (AC) | AC100V-AC240V ±10％, 50/60Hz | |
| Power consumption(Max.) | 120VA(max) | |
| Output Voltage | DC24V(max) | |
| Output Current | DC4.4A(max) | |
| Cooling method | Cooling fan | |
| Dimming | Current Control | |
| Dimming Method | -MANUAL: 0-100% on the front panel -REMOTE: 0-100% via Parallel -Fine Adjustment: 90-100% | |
| Remote Function | -Analog DC0-5V -LED ON/OFF -Resposible speed: 5msec typ. -Synchronization by daisy chain with controller (Dimming, ON/OFF, Protector) | -Digital 8bit 256 steps -LED ON/OFF -Resposible speed: 5msec typ -Synchronization by daisy chain with controller (Dimming, ON/OFF, Protector) |
| Synchronization | Master/ Slave mode | Master only |
| Circuit Protector | -Over voltage, Over current, Over heat by internal circuit of power supply -Over heat for LEDs | |
| Operating Conditions | -Indoor use -Altitude 2000m(MAX.) -Temp. 0-+40℃, Humidity 20-80%RH (non-moisture) -Short inrush voltage suppressing up to 1440V -Long inrush voltage suppressing up to 490V -Pollution level２ | |

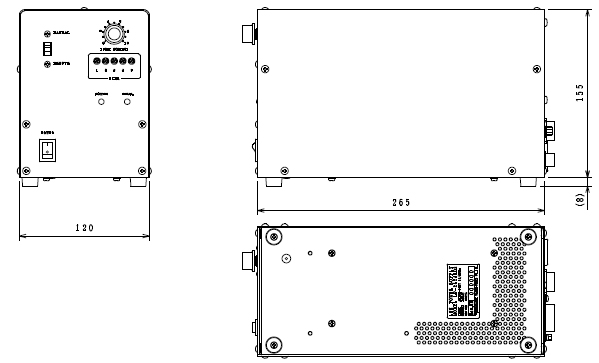

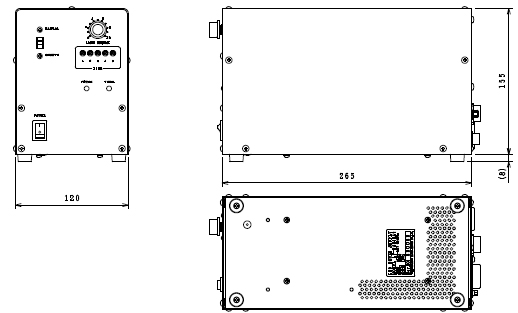

| Dimensions | 120mm(W)×155mm(H)×265mm(D) *excluding projecting parts | |
| Net Weight | Approx. 3.0kg | |
Power Supply for Line Ace
Model：LP-2424RA5 / LP-2424RD5 Series
Features：
Main Purposes：
