Conpact size LED Light source

Model:LA-HDF15T

Features:Long life, Low power consumption, Compact size

Main Purposes:

Recommended
  • Discription
  • Catalog

Specifications

Parameters | ModelLA-HDF15T
ColorWhite
Expected LED life30,000H (The avarage time until light intensity atenuats to 50% of the initial level)
Adjustable dimming0-100% / ※1 0-200,000lx
Operating Conditions0 to 35℃
Operating Humidity20-80%Rh(non-moisture)
Degree of ContaminationDegree 2
Operating ConditionsIndoor use

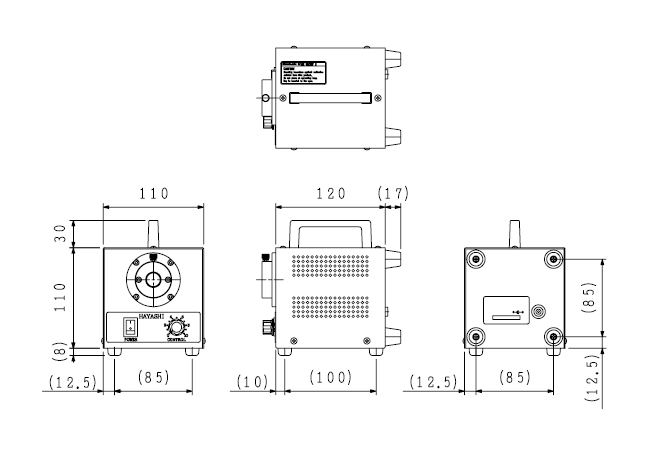

Dimensions110(W)×110(H)×120(D)mm ※excluding projecting parts
Net WeightApprox. 1.7kg
※1.Measuring condition Light guide φ8×500mm, WD50mm
AC adapter
ModelUIA324-24
Input VoltageAC100V-AC240V ±10%   50/60Hz
Output VoltageDC24V  1A
Power consumption(Max.)16W
Safety StandardsPSE
Dimensions44(W)×28.5(H)×96(D)mm ※excluding projecting parts
Net WeightApprox. 130g
