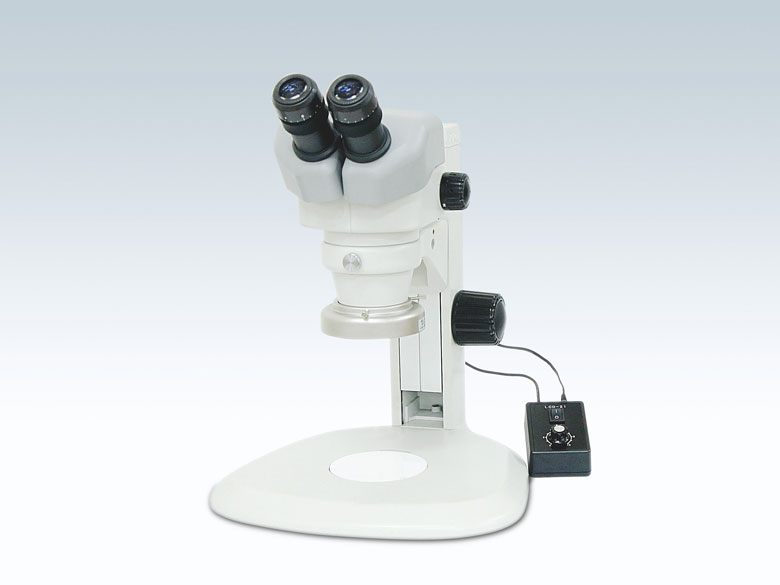

Microscopy ESD Cool White Ring Type LED

Model:HDR61WJ/LCD21

Features:

Main Purposes:For Microscopy

Recommended
  • Discription
  • Catalog

Specifications

Lighting

Parameters | Model

HDR61WJ

Color

Cool White

Expected LED life※1

20,000H (The avarage time until light intensity atenuats to 70% of the initial level)

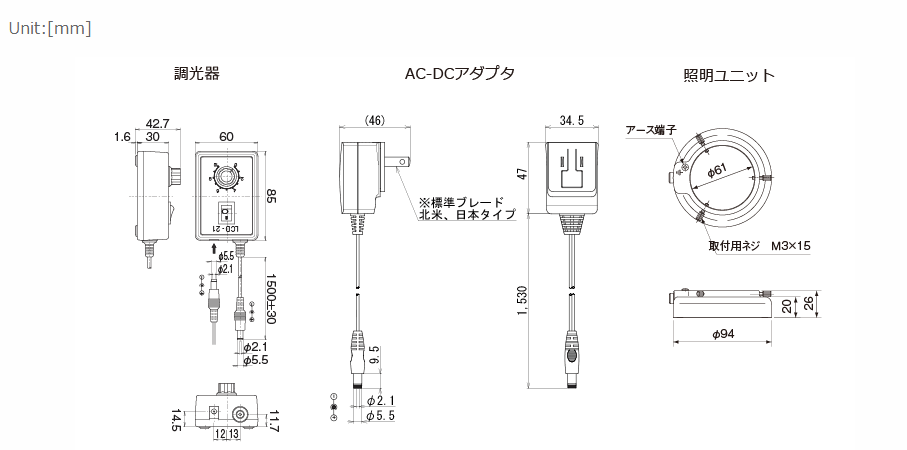

Dimensions

Outer φ94, Inner φ61, Height 26mm *excluding projecting parts

Net Weight

Approx. 120g

Diameter of Objective Lens

Max. φ61mm

Fixing

By 3 Screws,*Fixing Adapter available. Ask to sales

Designed Stitable Height

60~150mm

Filters※2

Clear, Diffusion, High Diffusion

※1.For Reference
※2.Changable

Dimmer

Parameters | Model

LCD-21

Input

DC12V, 0.5A

Out put

DC21V, 0.16A(MAX.)

Dimming adjustable

0-100%

AC adapter

Input

AC94 – 264V, 50/60Hz

Out put

DC12V, 0.5A

Efficiency

DOE Level VI CEC Erp Stage2

Safety Standards

UL/cUL, RCM, CCC, PSE, CE, GS
