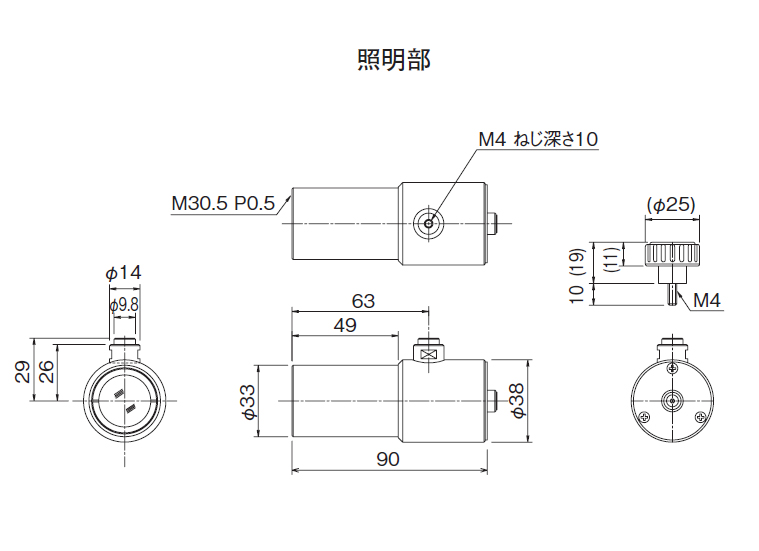

| Lighting | |
|---|---|
| Parameters | Model | SPA-3W |
| Color | Cool White |
| Irradiatable Area WD=100mm/ Intensity(lx) | φ70mm / 40,000lx |
| Irradiatable Area WD=150mm/ Intensity(lx) | φ105mm / 18,000lx |
| Expected LED life | 30,000H (The avarage time until light intensity atenuats to 70% of the initial level) |
| Filter Size | φ30.5mm |
| Dimensions | φ38×90mm *excluding projecting parts |
| Net Weight | Approx. 170g |
| ※1 For Reference | |

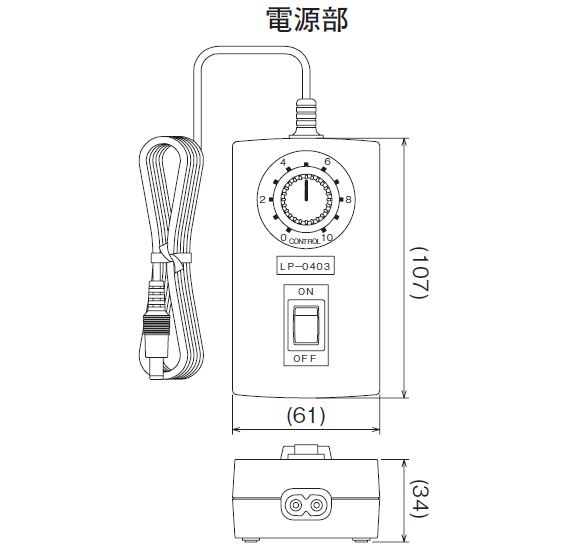

| Dimmer | |
| Parameters | Model | LP-0403 |
| Input Voltage | AC100V-AC240V ±10％, 50/60Hz |
| Power consumption(Max.) | 4W |
| Out put | DC4V, 0.6A |
| Adjustable Intensity | Current Control, 0-100% |
| Operating Conditions | 0-+40℃, 20-80% Rh |
| Dimensions | W61×H34×D107mm |
| Net Weight | Approx. 150g |
| Safety Standards | PSE,UL,cUL,C-Tick |
