Microscopy ESD Warm White Ring Type LED

Model：HDR61CW / LP-108

Features：

Main Purposes：

Discription
Catalog

Specifications
Lighting

Model	HDR61CW
Color	Warm White
Intensity	Avobe 20,000lx at WD100mm
Color Rendering Property ※1	Ra.85 (Typ.)
Color temp.※2	5,000K (Typ.)
Input	DC10.5V, 0.65A
Expected LED life	25,000H (The avarage time until light intensity atenuats to 70% of the initial level)

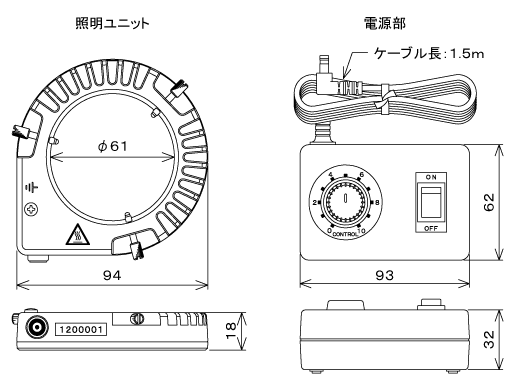

Dimensions	W94xD94xH18mm*excluding projecting parts
Net Weight	Approx. 140g
※1 For Reference ※2 For Reference

Dimmer

Model	LP-108
Input	AC100V-240V, 50/60Hz
Adjustable Intensity	0-100%
Dimensions	W93×D62×H32mm *excluding projecting parts
Net Weight	Approx. 150g
Safety Standards	UL・CE・PSE・CCC・RCM・GS
Accessories	AC cable※
※For Japan type. There are cable for US, UK, EU. Ask to Sales ※Fixing Adapter available. Ask to sales
