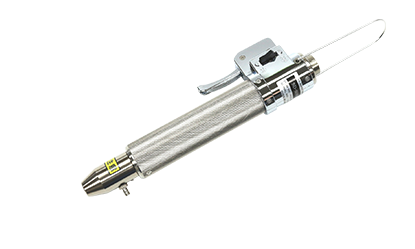

0755-36856361(SZ)Machine build type e-driver with DC motor
Model：SD-1500MF / SD-5000MF / SD-10000MF
Features：DC motor model, High accuracy tightening
Main Purposes：For Smart Phones, PCs, HDDs and Wrist watches
-
Hotline852-24181122 -
Share
Model：SD-1500MF / SD-5000MF / SD-10000MF
Features：DC motor model, High accuracy tightening
Main Purposes：For Smart Phones, PCs, HDDs and Wrist watches
| E-driver model | SD-500FC | SD-500FC | SD-5000F | SD-10000F | SD-18000F | |
|---|---|---|---|---|---|---|
| Controller model | CT-F／CT-FA | |||||
| Torque range | kgf・cm | 0.11～0.55 | 0.25～1.45 | 0.95～5.13 | 1.9～10.0 | 3.5～18.0 |
| N･m | 0.011～0.055 | 0.025～0.145 | 0.095～0.513 | 0.19～1.00 | 0.35～1.80 | |
| Speed[rpm] | 450～1380 | 432～1840 | 247～1280 | 125～655 | 120～570 | |
| Screw size (For reference) | M0.6～M1.0 | M1.0～M1.7 | M1.7～M3 | M3～M4 | M3～M5 | |
| Bit clamp size | φ1.5mm | φ4mmD | φ4mmD | 六角6.35mm | 六角6.35mm | |
