Condensing Spot Ace For Visual Inspection

Model:SPA-10SDZ / SPA-10SWZ

Features:Inspection for Lens, Filter, Optical Parts

Main Purposes:

  • Discription

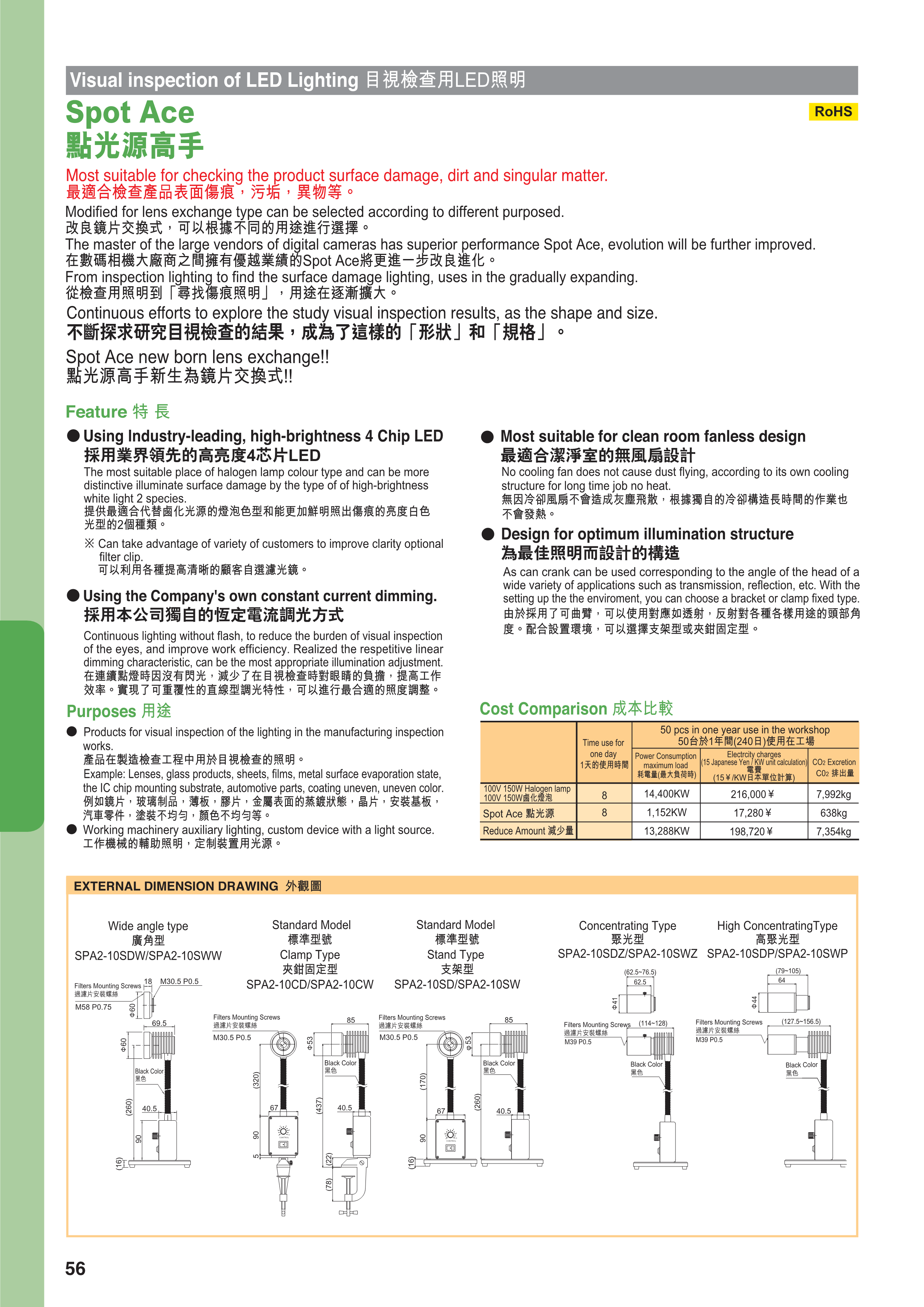

  • Catalog

Parameters | ModelSPA-10SDZ / SPA-10SWZ
ColorCool White(SPA-10SWZ) Warm White(SPA-10SDZ)
PlacingStand Type
Lens TypeCondensing
Lens modelTKG-3079-2650
Intensity ※165,000-120,000lx,  Cool White (SPA-10SWZ)
Iradiatable Area ※2φ80-115mm(WD=200mm)
Expected LED life ※320,000H (The avarage time until light intensity atenuats to 50% of the initial level)
Filter Size ※4φ39mm
Input VoltageDC15V
Power consumption(Max.)12W
DimmingDimmer on the front panel
Cooling methodHeat sink
Operating Conditions0-+40℃, 20%-80%RH (non-moisture)
Net WeightApprox. 1kg(excluding AC adapter)
AC adapterAC100-240V 50/60Hz
Out putDC15V 0.8A
※1:WD=200mm, For Reference
※2:WD=200mm, For Reference

※3:For Reference

※4:Ask to person in charge
