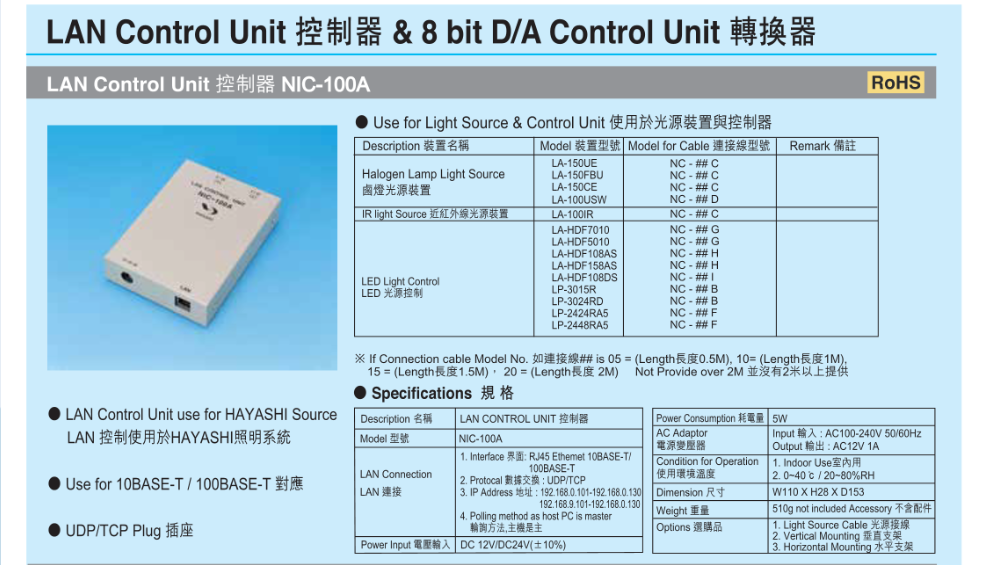

【Discontinued】LAN Control Unit (Intensity, On/Off)【Discontinued】

Model:NIC-100A

Features:

Main Purposes:

Recommended
  • Discription
  • Catalog

Specifications

Parameters | ModelNIC-100A
Communication
  • I/F:RJ45 (Ethernet 10BASE-T/100BASE-T)

  • Protocol:UDP/TCP

  • IP address:
     192.168.0.101~192.168.0.130,
     192.168.9.101~192.168.9.130

Input VoltageDC12V±10%/DC24V±10%
Power consumption(Max.)5W
Operating Conditions0℃~40℃, 20~80%RH(non-moisture, Indoor use)
Dimensions(W)110×(H)28×(D)153mm
Net WeightApprox. 510g
AC AdapterInput Voltage:AC100-240V,50/60Hz
Output Voltage:DC12V,1A
AccessoriesCoonection Cable
Vertical Mounter
Horizontal Mounter
Parameters | ModelCable model name
LA-150UENC-##C
LA-150FBUNC-##C
LA-150CENC-##C
LA-100USWNC-##D
LA-100IRNC-##C
LA-180Me-R4NC-##E
LA-HDF9020NC-##G
LA-HDF5010NC-##G
LA-HDF108ASNC-##H
LA-HDF158ASNC-##H
LA-HDF108DSNC-##I
LP-3015RNC-##B
LP-3024RDNC-##B
LP-3060RSTNC-##A
LP-2424RA5NC-##F
※##(05=0.5m, 10=1.0m, 15=1.5m, 20=2.0m)
