Current Control Power Supply

Model:LP-2820

Features:Standard model

Main Purposes:

Recommended
  • Discription
  • Catalog

Specifications

Model                                LP-2820
Input Voltage (AC)AC100V±15% 50/60Hz
Output VoltageDC28V×1
Output Current700mA×1
DimmingCurrent Control
Controlable current range0-700mA
Intensity adjustment0-100%
Circuit ProtectorHeat Protector (Auto shut down(recovery by re-start))
Operating Conditions0-+40℃ / 20-80%RH (non-moisture)
Remote FunctionLED ON/OFF, Dimming by DC0-5V

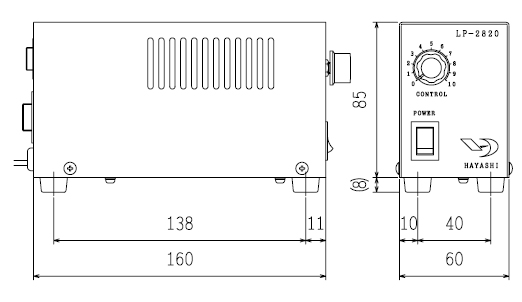

DimensionsW60×H85×D160 *excluding projecting parts
Net WeightApprox. 0.9kg
