| Model | LP-2820-Ⅱ |
|---|---|
| Input Voltage (AC) | AC100V±15% 50/60Hz |
| Output Voltage | DC28V×2 |
| Output Current | 700mA×2 |
| Dimming | Current Control |
| Controlable current range | 0-700mA |
| Intensity adjustment | 0-100% |
| Circuit Protector | Heat Protector (Auto shut down（recovery by re-start)) |
| Operating Conditions | 0-+40℃ / 20-80%RH(non-moisture) |
| Remote Function | LED ON/OFF, Dimming by DC0-5V |

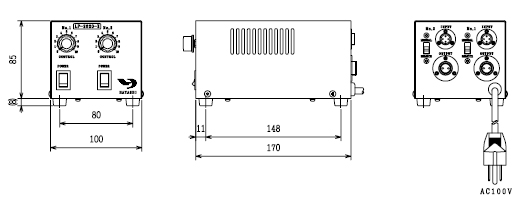

| Dimensions | W100×H85×D170 *excluding projecting parts |
| Net Weight | Approx. 1.6kg |
2Ch Current Control Power Supply
Model：LP-2820-Ⅱ
Features：
Main Purposes：
