| Model | LP-2820-Ⅲ |
|---|---|
| Input Voltage (AC) | AC100V±15% 50/60Hz |
| Output Voltage | DC28V×3 |
| Output Current | 700mA×3 |
| Dimming | Current Control |
| Controlable current range | 0-700mA |
| Intensity adjustment | 0-100% |
| Circuit Protector | Heat Protector (Auto shut down（recovery by re-start)) |
| Operating Conditions | 0-+40℃ / 20-80%RH(non-moisture) |
| Remote Function | LED ON/OFF, Dimming by DC0-5V |

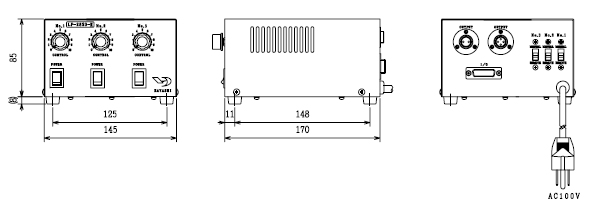

| Dimensions | W145×H85×D170mm*excluding projecting parts |
| Net Weight | Approx. 2.4kg |
3ch Current Control Power Supply
Model：LP-2820-Ⅲ
Features：
Main Purposes：
