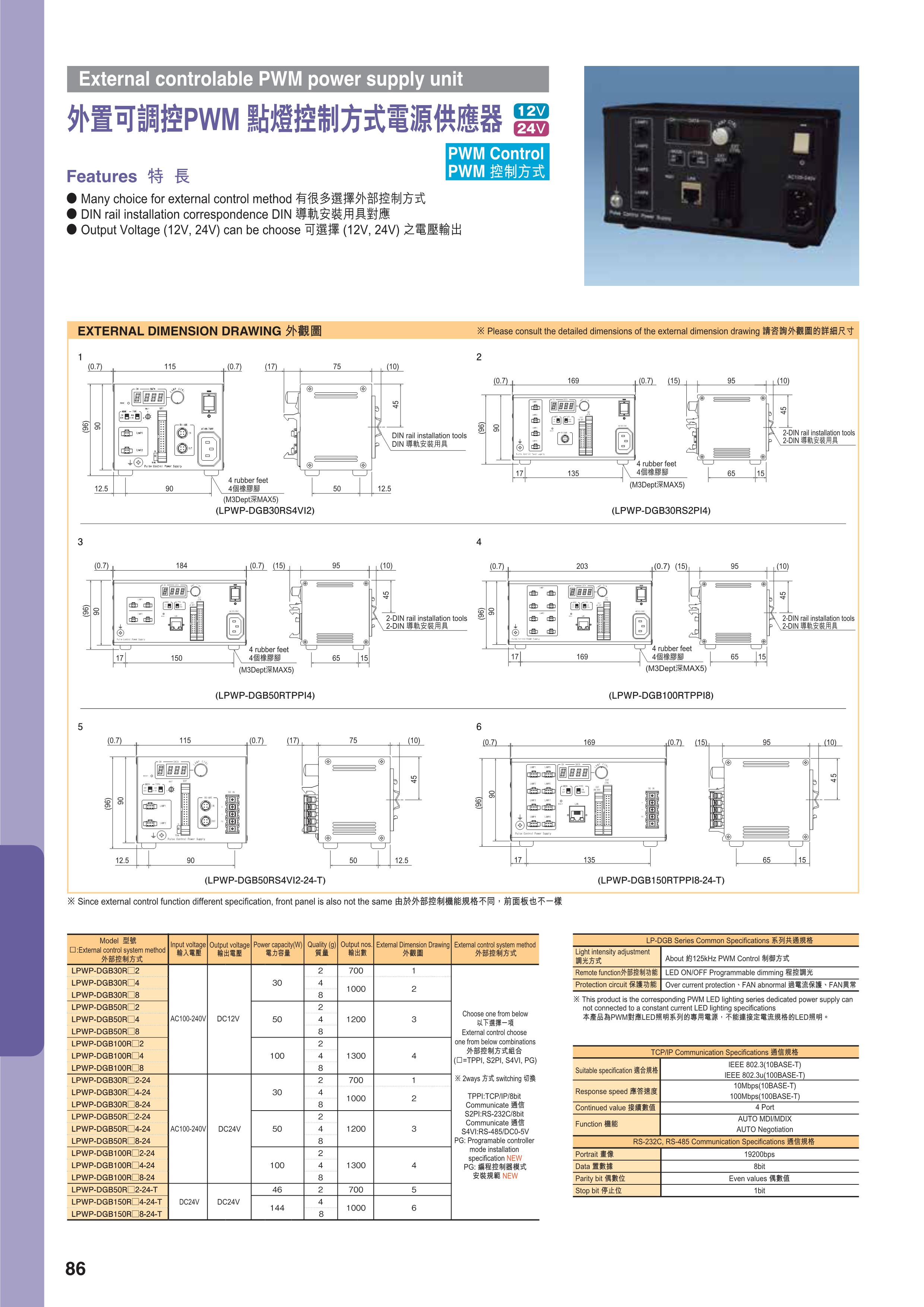

※1.□ is into CH number such as (2=2CH、4=4CH、8=8CH)
※2.For DC24V is added “24”
※3.■ is into Control method such as (TPPI, S2PI、S4VI)

TPPI means via LAN 8bit dimming
S2PI means via RS-232C 8 bit dimming
S4VI means via RS-485 DC0-5V dimming

e.g.)

Output DC24V, Power Capacity 100W, I/F (RS-485)/DC0-5V and for 4CH lighting units
Model name: LPWP-DGB100RS4VI4-24

Output DC12V, Power Capacity 30W, I/F (TCP/IP)/ 8bit or Pararell cominucation, for 8CH lighting units
Model name:LPWP-DGB30RTPPI8
