Current Control Compact size simple controller for Spot type LED

Model:HLC-24 / HRC-24

Features:Compact size, simple, light weight

Main Purposes:

Recommended
  • Discription
  • Catalog

Specifications

ModelHLC-24-700                HLC-24-350    HRC-24-700HRC-24-350
Input Voltage (AC)AC Adapter (DC24V 0.5A)DC24V 0.5A Above
Output Current700mA (MAX.)350mA MAX.700mA MAX.350mA MAX.
Output CH.1
DimmingCurrent control
Operating Conditions0℃ – +40℃/20% – 70% RH (non-moisture)
Net WeightApprox.74gApprox.70g
Remote Function-ON/OFF, Dimming

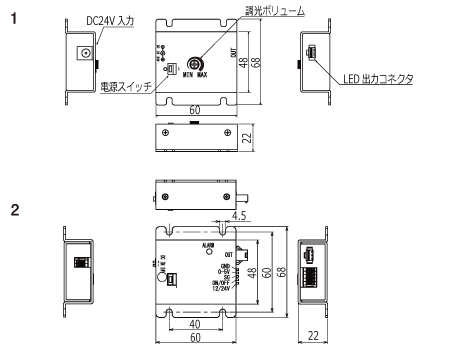

Drawing
12

*HLC-24-700 is for HDMUI
*HLC-24-350 is for HDMSI
*HRC-24-700 is for HDMUI
*HRC-24-350 is for HDMSI
