| Model | LC-POE-ST7M2A | LC-POE-ST7M4A | LC-POE-P7M2A | LC-POE-P7M4A |
|---|---|---|---|---|
| Communication | TCP/IP (100M/10Mbps) | |||
| Input | Power over Ethernet (PoE) (IEEE802.3af) | |||
| Power Capacity(Max.) | 30W | 30W | ||
| Output Voltage (DC) | 12-36V | 12V | ||
| Output Current | 4A MAX. (Strobo peak) | 650mA MAX. | ||
| Output Channel | 2 | 4 | 2 | 4 |
| Dimming | Dimming (10bit) Pulse width :1ms below (0-999µs) Strobo cycle:5% or below Internal trigger (fixed) Frequency cycle 4kHz, Width 12.5µs | PWM (8bit) | ||
| Remote Function | ON/OFF, Dimming | |||
| Responsible speed | 1µs | Approx.1µs | ||
| Drawing | 1 | 2 | 1 | 2 |

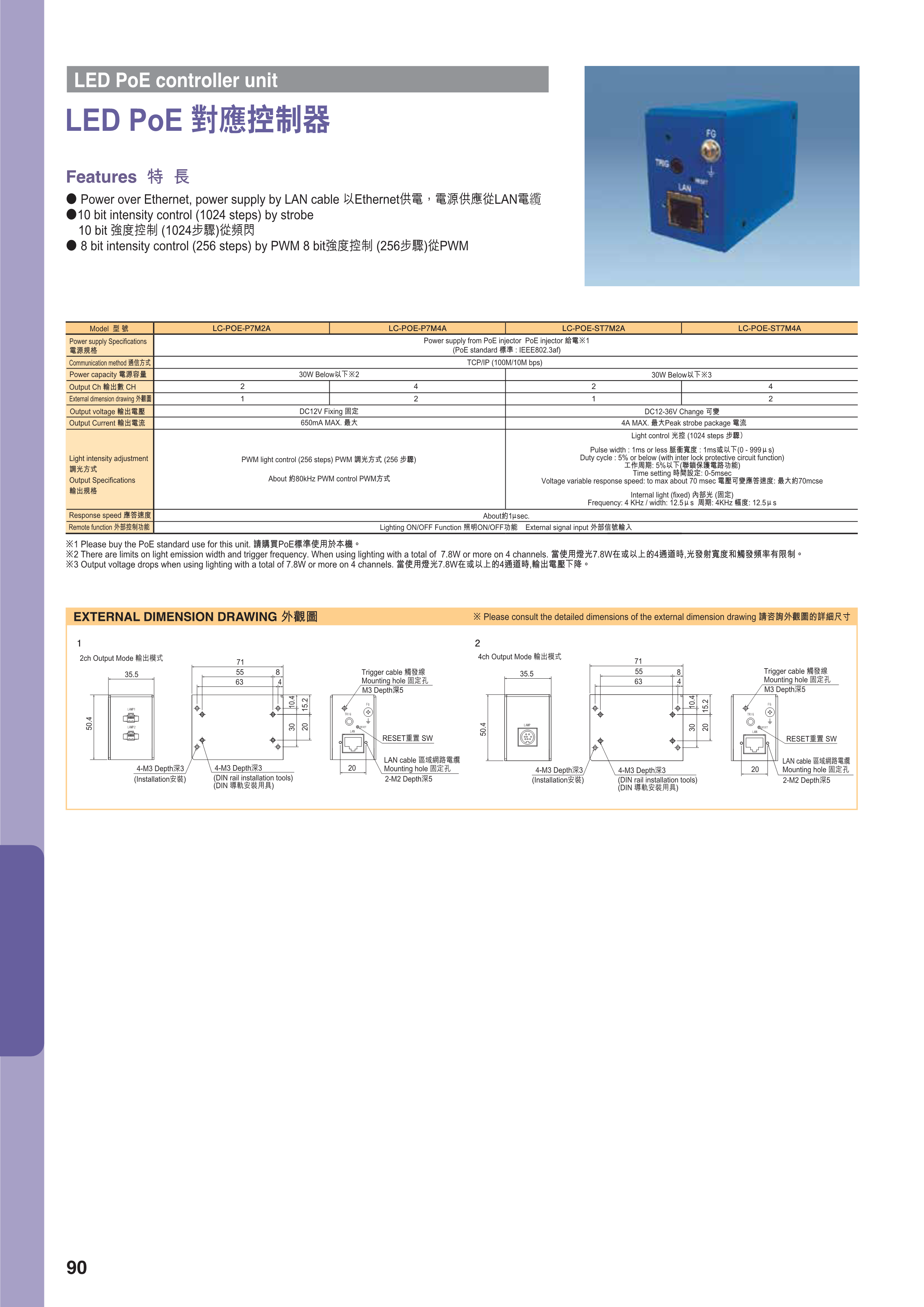

PoE LED Controller
Model：LC-POE-P / LC-POE-ST Series
Features：Power over Ethernet (PoE), Dimming via LAN
Main Purposes：For Long distance from Lighting to Control system 100m available
