| Model | LPWI-12124 | LPWI-12128 | |
|---|---|---|---|
| Output Voltage | DC12V | ||
| Output Current | 200-1000mA (Settable each Ch. every 50mA) | ||
| Input Voltage (AC) | AC100V-AC240V(50/60Hz) | ||
| Output Channel (CH) | 4 | 8 | |
| Dimming | Current Control | ||
| Remote Function※2 | Common | ON/OFF | |
| -VI | DC0-5V | ||
| -PI | Parallel 8bit | ||
| -S2 | RS-232C 8bit | ||
| -S4 | RS-485 8bit | ||
| -TP | TCP/IP 8bit | ||
| Protection | Circuit Protector, Heat Protector | ||

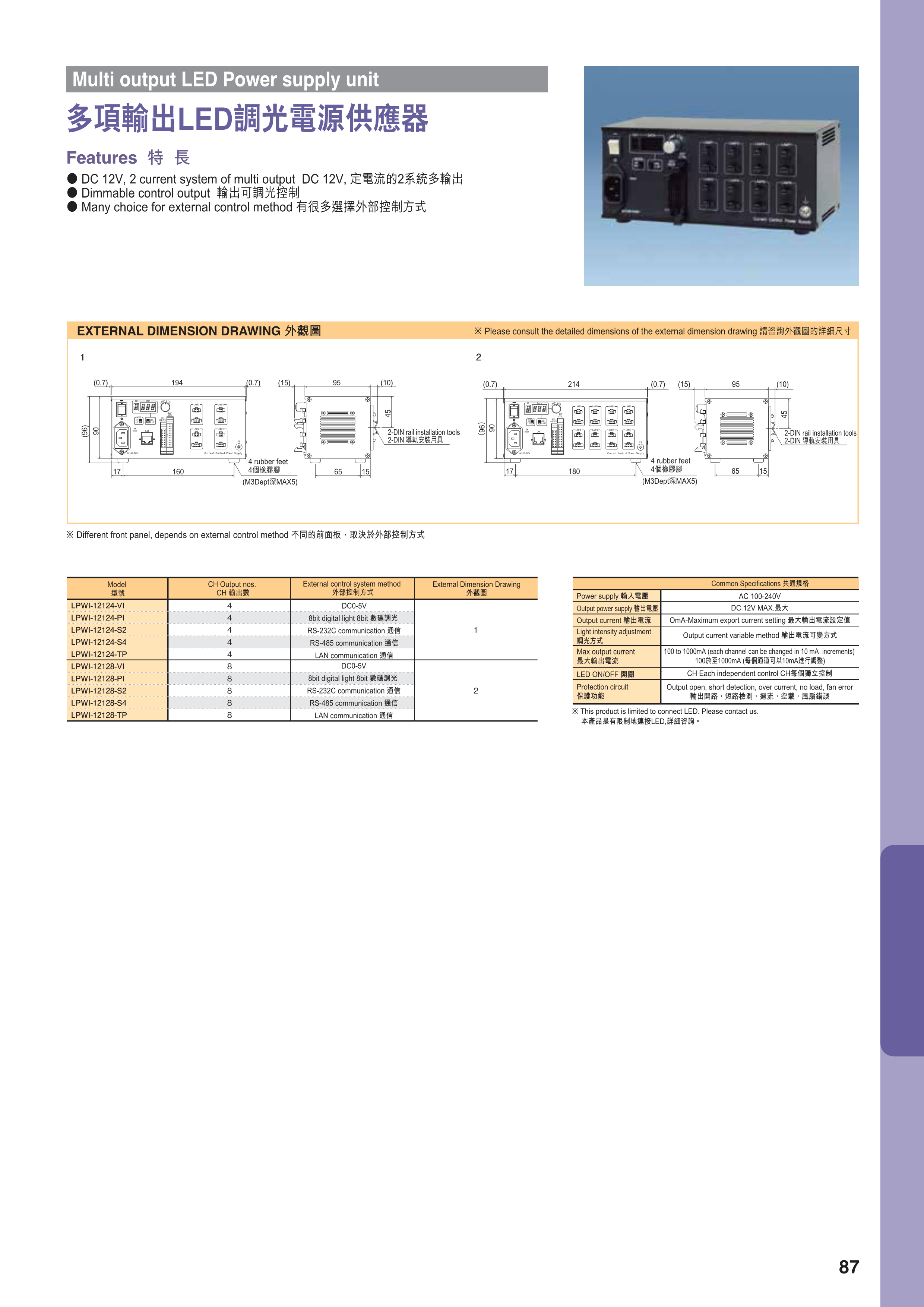

| Drawing | 1 | 2 | |
Model name is added with (-VI、-PI、-S2、-S4、-TP) that for Remote method | |||

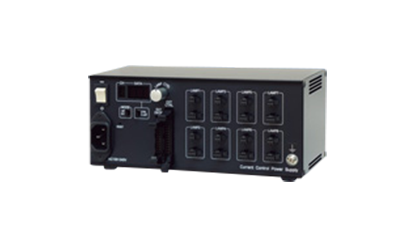

PWM Multi Output Chanel LED Power Supply
Model：LPWI-12124 / LPWI-12128 Series
Features：
Main Purposes：
