| Model | Color | Power consumption (Max.)(W) | Max. Voltage Setting For SAG series | Dimensions (mm) | Mounting Hole | |||
|---|---|---|---|---|---|---|---|---|
| a | b | c | Pitch Circle Diameter | Screw Size | ||||
| HHRA-LE90S-R | Red | 10.5 | 92 | φ35 | φ90 | 30 | 75 | 4-M3x6mmDP |
| HHRA-LE90S-W | White | 7F | ||||||
| HHRA-LE90S-B | Blue | 7E | ||||||
| HHRA-LE90S-IR-850 | IR850nm | BA | ||||||
| HHRA-LE90L-R | Red | 10.5 | 92 | φ35 | φ90 | 30 | 75 | 4-M3x6mmDP |
| HHRA-LE90L-W | White | 7F | ||||||
| HHRA-LE90L-B | Blue | 7E | ||||||
| HHRA-LE90L-IR-850 | IR850nm | BA | ||||||
| HHRA-LE90C50-R | Red | 10.5 | 92 | φ35 | φ90 | 30 | 75 | 4-M3x6mmDP |
| HHRA-LE90C50-W | White | 7F | ||||||
| HHRA-LE90C50-B | Blue | 7E | ||||||
| HHRA-LE90C50-IR-850 | IR850nm | BA | ||||||
| HHRA-LE90C100-R | Red | 10.5 | 92 | φ35 | φ90 | 30 | 75 | 4-M3x6mmDP |
| HHRA-LE90C100-W | White | 7F | ||||||
| HHRA-LE90C100-B | Blue | 7E | ||||||
| HHRA-LE90C100-IR-850 | IR850nm | BA | ||||||
| ※S＝Wider, L＝Nallow, C50＝50mmCondensing, C100＝100mmCondensing | ||||||||

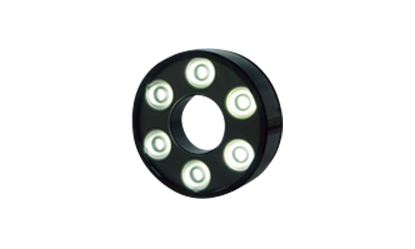

PWM Spot Ring Type
Model：HHRA-LE
Features：
Main Purposes：
