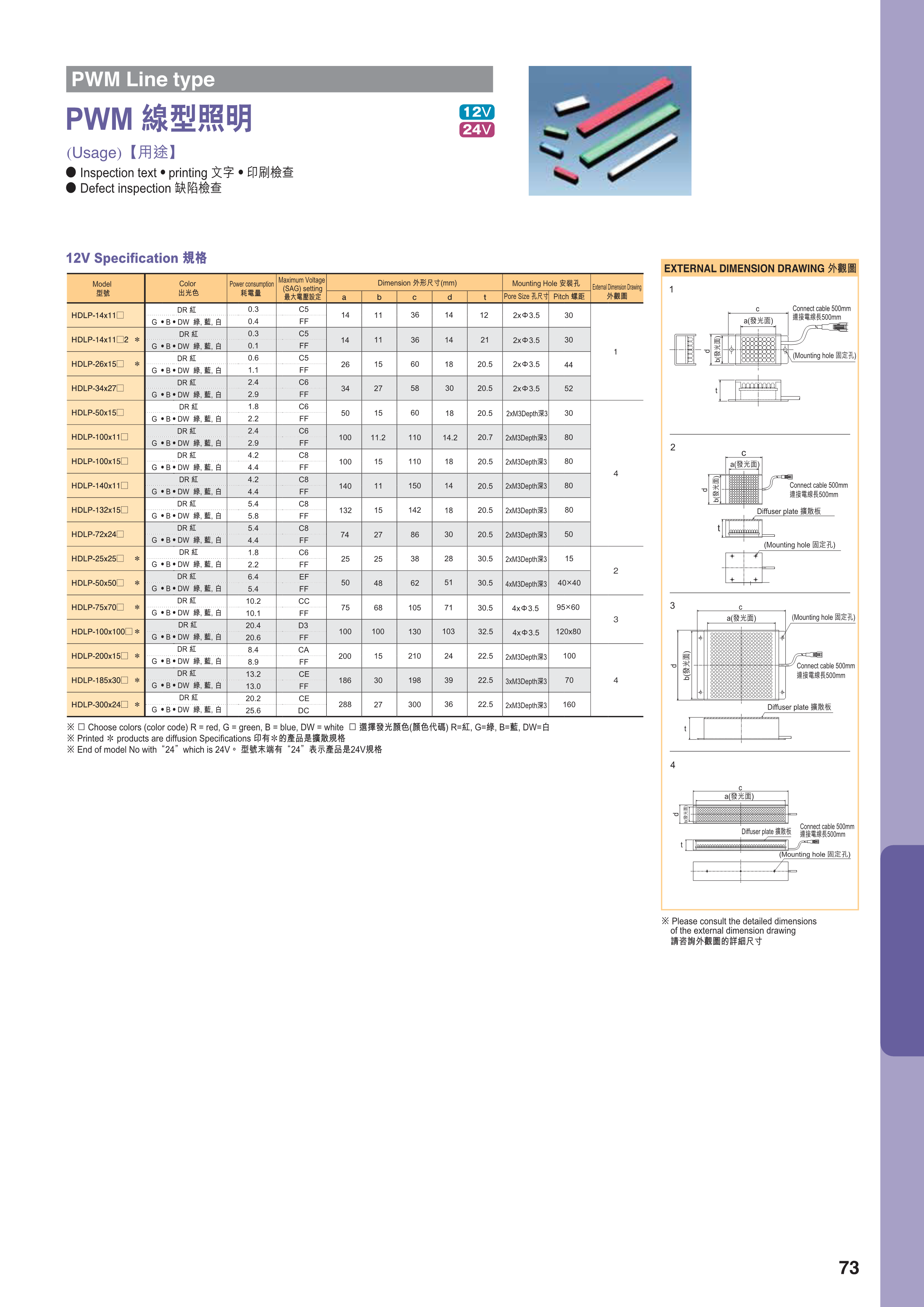

PWM Line Type-KORIN ELECTRONIC Co.,LTD

Model	*	Color	Power consumption (Max.)(W)	Max. Voltage Setting For SAG series	Drawing	Dimensions (mm)					Mounting Hole
Model	*	Color	Power consumption (Max.)(W)	Max. Voltage Setting For SAG series	Drawing	a	b	c	d	t	Pitch Circle Diameter	Screw Size
HDLP-14×11R		Red	0.3	6D	1	14	11	36	14	12	30	2-φ3.5
HDLP-14×11□		DW,B,G	0.5	FF		14	11	36	14	12	30	2-φ3.5
HDLP-14×11R2	*	Red	0.3	6D		14	11	36	14	21	30	2-φ3.5
HDLP-14×11□2	*	DW,B,G	0.5	FF		14	11	36	14	21	30	2-φ3.5
HDLP-26×15R	*	Red	0.8	6D		26	15	50	18	20.5	44	2-φ3.5
HDLP-26×15□	*	DW,B,G	1.5	FF		26	15	50	18	20.5	44	2-φ3.5
HDLP-34×27R		Red	2.0	6E		34	27	58	30	20.5	52	2-φ3.5
HDLP-34×27□		DW,B,G	3.9	FF		34	27	58	30	20.5	52	2-φ3.5
HDLP-50×15R		Red	1.5	6E	2	50	15	60	18	20.5	30	2-M3x3mmDP
HDLP-50×15□		DW,B,G	2.9	FF		50	15	60	18	20.5	30	2-M3x3mmDP
HDLP-100×11R		Red	2.0	6E		100	11.2	110	14.2	20.7	80	2-M3x3mmDP
HDLP-100×11□		DW,B,G	3.9	FF		100	11.2	110	14.2	20.7	80	2-M3x3mmDP
HDLP-100×15R		Red	2.9	6F		100	15	110	18	20.5	80	2-M3x3mmDP
HDLP-100×15□		DW,B,G	5.8	FF		100	15	110	18	20.5	80	2-M3x3mmDP
HDLP-140×11R		Red	2.9	6F		140	11	150	14	20.5	80	2-M3x3mmDP
HDLP-140×11□		DW,B,G	5.8	FF		140	11	150	14	20.5	80	2-M3x3mmDP
HDLP-132×15R		Red	3.9	70		132	15	142	18	20.5	80	2-M3x3mmDP
HDLP-132×15□		DW,B,G	7.7	FF		132	15	142	18	20.5	80	2-M3x3mmDP
HDLP-72×24R		Red	4.4	73		74	27	86	30	20.5	50	2-M3x3mmDP
HDLP-72×24□		DW,B,G	5.8	FF		74	27	86	30	20.5	50	2-M3x3mmDP
HDLP-25×25R	*	Red	1.5	6E		25	25	35	28	30.5	15	2-M3x3mmDP
HDLP-25×25□	*	DW,B,G	2.9	FF		25	25	35	28	30.5	15	2-M3x3mmDP
HDLP-50×50R	*	Red	5.8	71		50	48	62	51	30.5	40×40	4-M3x3mmDP
HDLP-50×50□	*	DW,B,G	7.2	FF		50	48	62	51	30.5	40×40	4-M3x3mmDP
HDLP-75×70R	*	Red	6.8	72	3	75	68	105	71	30.5	95×60	4-M3x3mmDP
HDLP-75×70□	*	DW,B,G	13.5	FF		75	68	105	71	30.5	95×60	4-M3x3mmDP
HDLP-100×100R	*	Red	13.7	77		100	100	130	103	32.5	80×120	4-φ3.5
HDLP-100×100□	*	DW,B,G	27.4	FF		100	100	130	103	32.5	80×120	4-φ3.5
HDLP-200×15R	*	Red	6.0	71	4	200	15	210	24	22.5	100	2-M3x3mmDP
HDLP-200×15□	*	DW,B,G	11.8	FF		200	15	210	24	22.5	100	2-M3x3mmDP
HDLP-185×30R	*	Red	8.7	73		186	30	198	39	22.5	70	3-M3x3mmDP
HDLP-185×30□	*	DW,B,G	17.3	FF		186	30	198	39	22.5	70	3-M3x3mmDP
HDLP-300×24R	*	Red	17.1	7A		300	36	288	27	22.7	160	2-M3x3mmDP
HDLP-300×24□	*	DW,B,G	34.1	FF		300	36	288	27	22.7	160	2-M3x3mmDP
※*Diffusion Filter Available ※Color into □(DW=White、B=Blue、G=Green)
