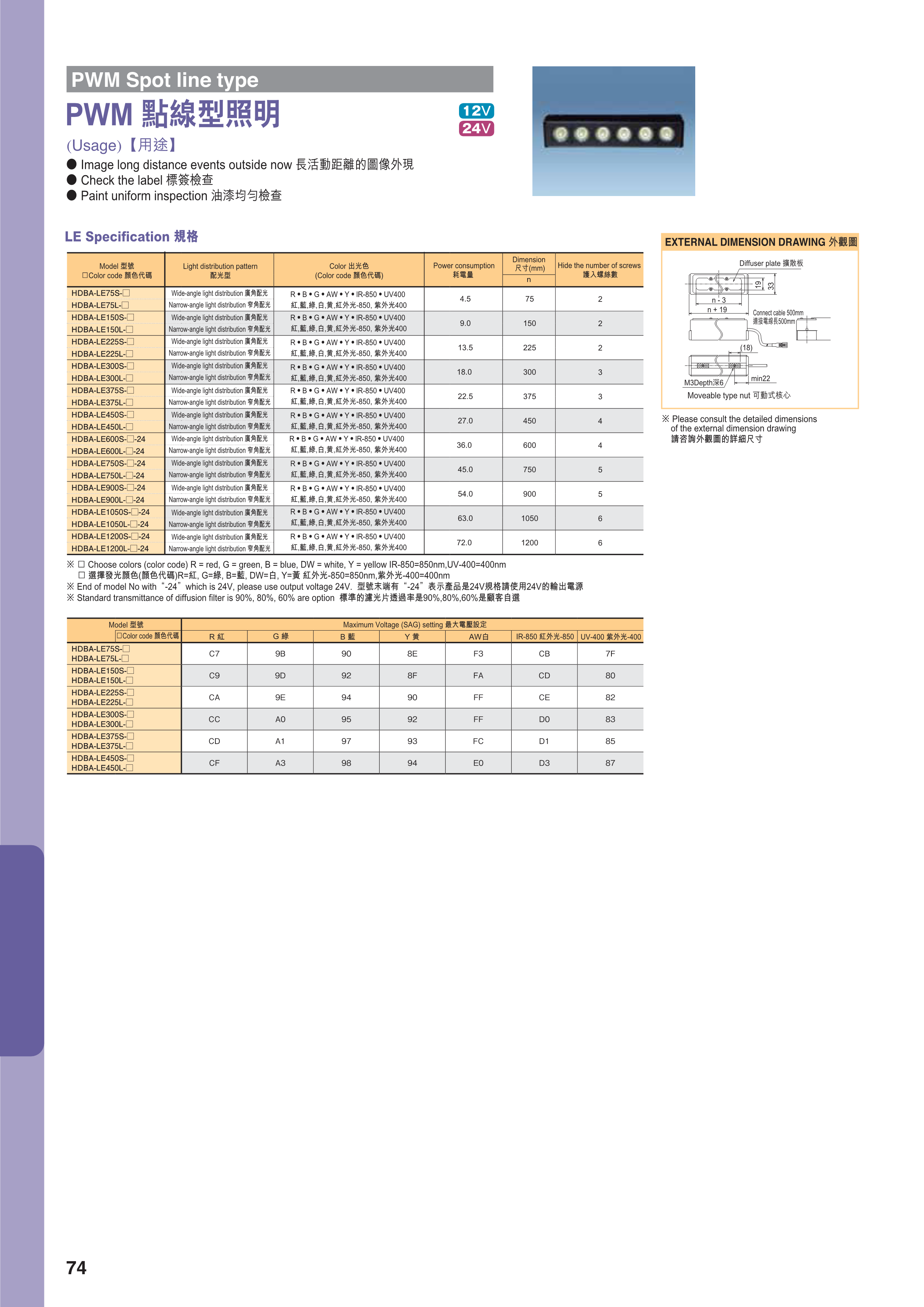

PWM Line Spot Type

Model:HDBA-LE

Features:

Main Purposes:

Recommended
  • Discription
  • Catalog

Specifications

Model                         Color                              Power consumption
(Max.)(W)
Dimensions (mm)Screws
HDBA-LE75■-□R, G, B, W, Y, IR, UV4.5752
HDBA-LE150■-□R, G, B, W, Y, IR, UV9.01502
HDBA-LE225■-□R, G, B, W, Y, IR, UV13.52252
HDBA-LE300■-□R, G, B, W, Y, IR, UV18.03003
HDBA-LE375■-□R, G, B, W, Y, IR, UV22.53753
HDBA-LE450■-□R, G, B, W, Y, IR, UV27.04504
HDBA-LE600■-□-24R, G, B, W, Y, IR, UV36.06004
HDBA-LE750■-□-24R, G, B, W, Y, IR, UV45.07505
HDBA-LE900■-□-24R, G, B, W, Y, IR, UV54.09005
HDBA-LE1050■-□-24R, G, B, W, Y, IR, UV63.010506
HDBA-LE1200■-□-24R, G, B, W, Y, IR, UV72.012006
Model ending added “-24” means for 24V Power supply
※■ S=Wider Irradiate, L=Nallow Irradiate
※□Color
 (R=Red, G=Green, B=Blue, W=White, Y=Yellow, IR-850=850nm、UV-400=400nm)
※Diffusion Filters Available Transmittance90%, 60%, 80%. Ask to Sales
