PWM Coaxial Drop Type-KORIN ELECTRONIC Co.,LTD

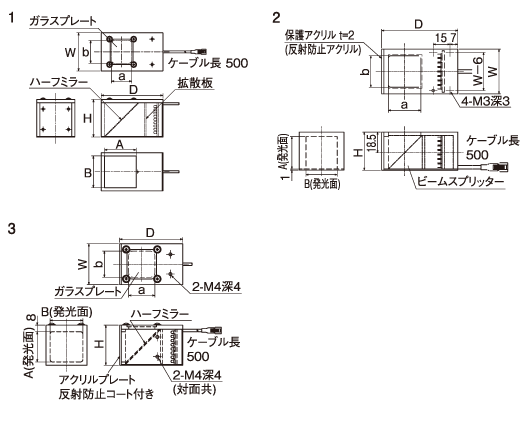

Model	Color	Power consumption (Max.)(W)	Max. Voltage Setting For SAG series	Drawing	Dimensions (mm)
Model	Color	Power consumption (Max.)(W)	Max. Voltage Setting For SAG series	Drawing	Window size a×b	Lighting size A×B	D	W	H
HDVP-13R	Red	0.8	6D	1	13×13	□13	51.6	22	20
HDVP-13□	DW, B, G	0.8	FF		13×13	□13	51.6	22	20
HDVP-20R	Red	1.2	6D		φ19	□20	50	34	24
HDVP-20□	DW, B, G	2.2	FF		φ19	□20	50	34	24
HDVP-32R	Red	1.7	6F		30×28	□32	70	38	40
HDVP-32□	DW, B, G	3.4	FF		30×28	□32	70	38	40
HDVP-40R	Red	2.7	6F		32×32	□40	75	50	49
HDVP-40□	DW, B, G	4.1	FF		32×32	□40	75	50	49
HDVP-50R	Red	4.8	71		32×36	□50	97	60	59
HDVP-50□	DW, B, G	6.5	FF		32×36	□50	97	60	59
HDVP-70R	Red	6.8	72		50×50	73×72	120	82	79
HDVP-70□	DW, B, G	13.5	FF		50×50	73×72	120	82	79
HDVP-100R	Red	13	77		76×76	112×100	159	110	109
HDVP-100□	DW, B, G	26	FF		76×76	112×100	159	110	109
*HDBSVP-18R	Red	1	86	2	19×18	19×18	58	30	24
*HDBSVP-18□	DW, B, G	1.7	FF		19×18	19×18	58	30	24
*HDBSVP-28R	Red	3.4	AD		29×28	29×28	68	40	34
*HDBSVP-28□	DW, B, G	4.6	FF		29×28	29×28	68	40	34
*HDHMVP-32R	Red	1.7	6F	3	30×28	27×28	72	38	40
*HDHMVP-32□	DW, B, G	3.4	FF		30×28	27×28	72	38	40
*HDHMVP-40R	Red	2.7	6F		32×32	37×40	77	50	49
*HDHMVP-40□	DW, B, G	4.1	FF		32×32	37×40	77	50	49
*HDHMVP-50R	Red	4.8	71		32×36	47×50	99	60	59
*HDHMVP-50□	DW, B, G	6.5	FF		32×36	47×50	99	60	59
※Added "*" using beam splitter for Coaxial Drop ※□(B=Blue, G=Green, DW=White)
