| Parameters | Model | LA-410UV-4/LA-410UV-5/LA-410UV-3 |
|---|---|
| Power（Typ.）※1 | 3,500mW/c㎡（at365nm,LA-410UV-4) |
| LA-410UV-4 Wave length ※2 | 300-450nm |
| LA-410UV-5 Wave length ※2 | 240-400nm |
| LA-410UV-3 Wave length ※2 | 400-700nm |
| LA-410UV-4 Lamp model | MX4040：200W Hg-Xe Lamp |
| LA-410UV-5 Lamp model | MX4040：200W Hg-Xe Lamp |
| LA-410UV-3 Lamp model | XE4030：150W Xe Lamp |
| LA-410UV-4 Lamp's Life Time | 4,000H Guarantee ※3 |
| LA-410UV-5 Lamp's Life Time | 4,000H Guarantee ※3 |
| LA-410UV-3 Lamp's Life Time | 2,000H Guarantee ※3 |
| Input Voltage (AC) | AC100V-240V（Universal Switched）50/60Hz |
| Power consumption(Max.) | Below 300VA |
| Intensity adjustment | By Mesh Aperture, Adjustable 0-100% |
| Operating Conditions | +5℃-+35℃/80％以下（non-moisture） |
| Cooling method | Cooling fan |
| Shading | By Mechanical Shutter |
| Safety Standard | CE |

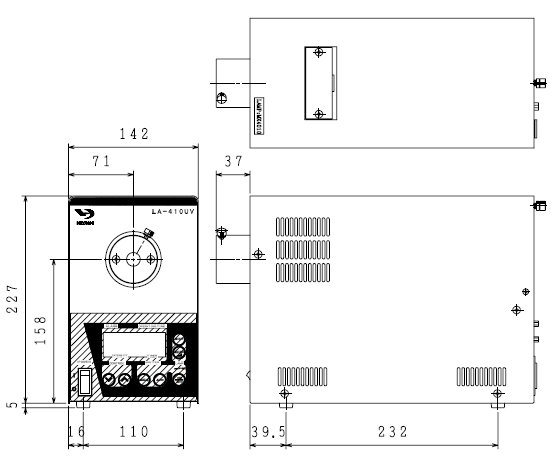

| Dimensions | W142×H227×D311mm ※excluding projecting parts |
| Net Weight | Approx. 6.4kg |
| Optional Filters | A9616 series |
| ※1.Measuring condition Light guide φ3.5×1,000mm, WD10mm ※2.For reference ※3.Abnormal Switching will be short life time of the Lamp | |
Ultra Violet Hg-Xe Lamp Light Source
Model：LA-410UV
Features：
Main Purposes：
