| Parameters | Model | LA-100USW |
|---|---|
| Input Voltage (AC) | AC100V-AC240V ±10％ |
| Frequency | 50/60Hz |
| Power consumption(Max.) | 130W(100W halogen lamp) |
| Lamp models | JCR12V100W10H/JCR12V100WH10 |
| Color temp. | 3,100K |
| Avarage life time ※1 | 1,000H |
| Avarage Intensity ※2 | 500,000lx |
| Intensity adjustment | Voltage dimming |
| Stability | Input voltage ±10% then intensity stability ±0.3% |
| Adjustable Voltage | DC3-12V |
| Adjustable Intensity | 2-100% |
| Cooling method | Cooling fan |
| Filters | Thermal protection filter |
| Operating Conditions | 0℃-+40℃, 20%-80%RH （non-moisture） |

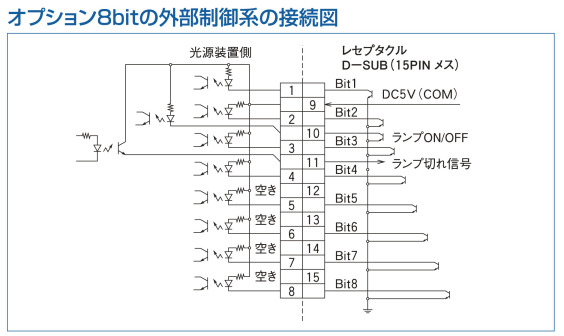

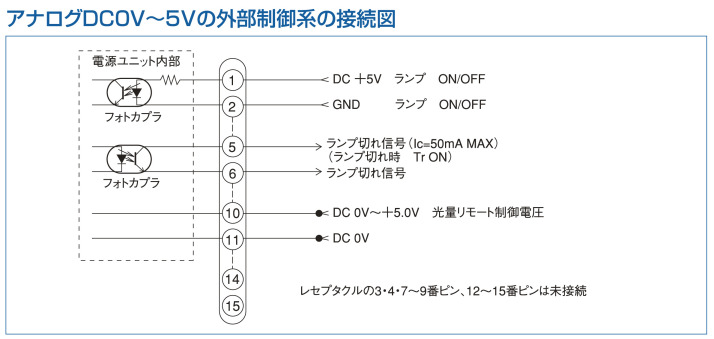

| Remote Function | Power ON/OFF, Intensity control(DC0-5V), Over heat protection and Alert |

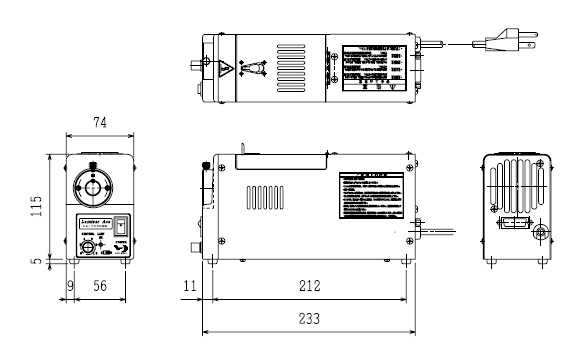

| Dimensions | W74×H115×D233mm ※excluding projecting parts |
| Net Weight | Approx. 2kg |
| ※1. For reference ※2. Measuring condition Light guide φ5×500mm, WD50mm | |
Halogen 100W Light Source
Model：LA-100USW
Features：
Main Purposes：
